Bicycle Hydraulic Disc Brake Oil Needle Pressing Tool for BH59 + Hose Cutter

  • $41.43
    Unit price per
Tax included. Shipping calculated at checkout.

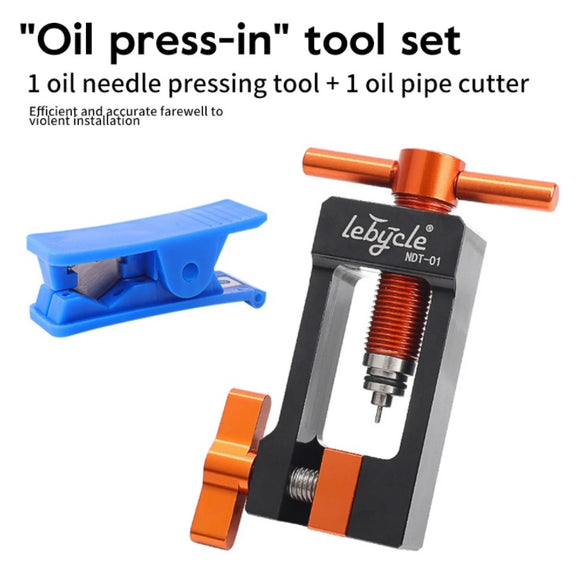

Bicycle Hydraulic Disc Brake Oil Needle Pressing Tool for BH59 + Hose Cutter

LeBycle MTB Bicycle Scooter Oil Needle Insert Cutter Hose Tubing Multifunction Tool For BH59 Bike Hydraulic Disc Brake

Features:
1. Built-in detachable stainless steel thimble, available at both ends, suitable for a variety of oil needles.
2. The connector thimble is made of stainless steel, the needle tip is not easy to bend, deform, and is durable.
3. The hollow design of the workbench makes it easy for the index finger and thumb to align with the oil needle and tubing, so as to prevent the tubing from being twisted, broken and deformed due to violence.
4. The locking screw is thickened, and the large-size tubing clamping block is firmly locked without loosening, not easy to be damaged, and durable.

Specification:
Brand: LeBycle
Material: aluminum alloy + stainless steel
Color: black and orange
Applicable 5/5.4mm tubing

Installation guide:
BH59 oil needle installation:
1. Put the olive head into the tubing first.
2. Put one end of the tubing into the slot and fix it, and align the thimble.
3. Put the oil needle on the stainless steel thimble.
4. Turn the thimble rotary valve to the position where the oil needle and the tubing core fit.
5. Continue to turn the thimble rotary valve until the oil needle is completely pressed into the tubing core.
6. The oil needle installation is complete.
Five-wire body oil needle installation:
1. Remove the stainless steel thimble and load it in reverse.
2. Put the link screw and olive head into the tubing first.
3. Insert one end of the five-wire body connector into the tubing core.
4. After fixing the oil pipe, turn the thimble rotary valve to the position where the oil needle and the oil pipe core meet.
5. Continue to turn the thimble rotary valve until the oil needle is completely pressed into the tubing core.
6. Rotate the link screw to complete the installation of the oil needle.

Package includes:
- Oil Needle Pressing Tool*1
- Tubing Cutter*1
