E-Bike DIY Kit - convert 27.5" bike to E-Bike, 350W, 15.6Ah,Throttle

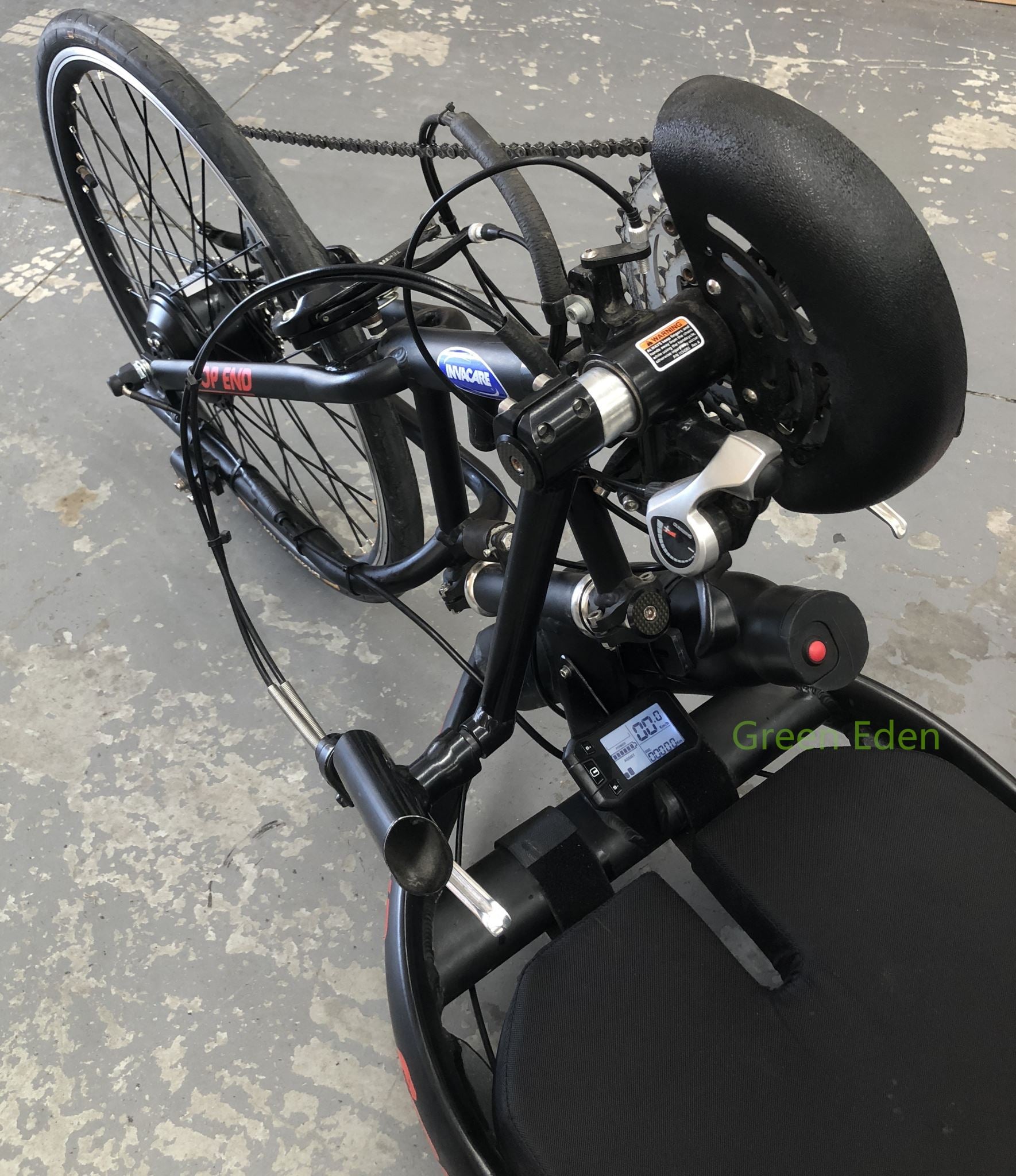

Convert your mountain bike or handcycle to Electrical Bike
The bike or handcycle must meet the following specifications, please read carefully otherwise we don't refund the round-trip shipping fee.
- 27.5" rear wheel with 7 ~ 10 sprocket Cassette hub (not freewheel, our Kit provides cassette hub)
Note, this kit doesn't come with cassette, for user prefer to install existing cassette to this kit.

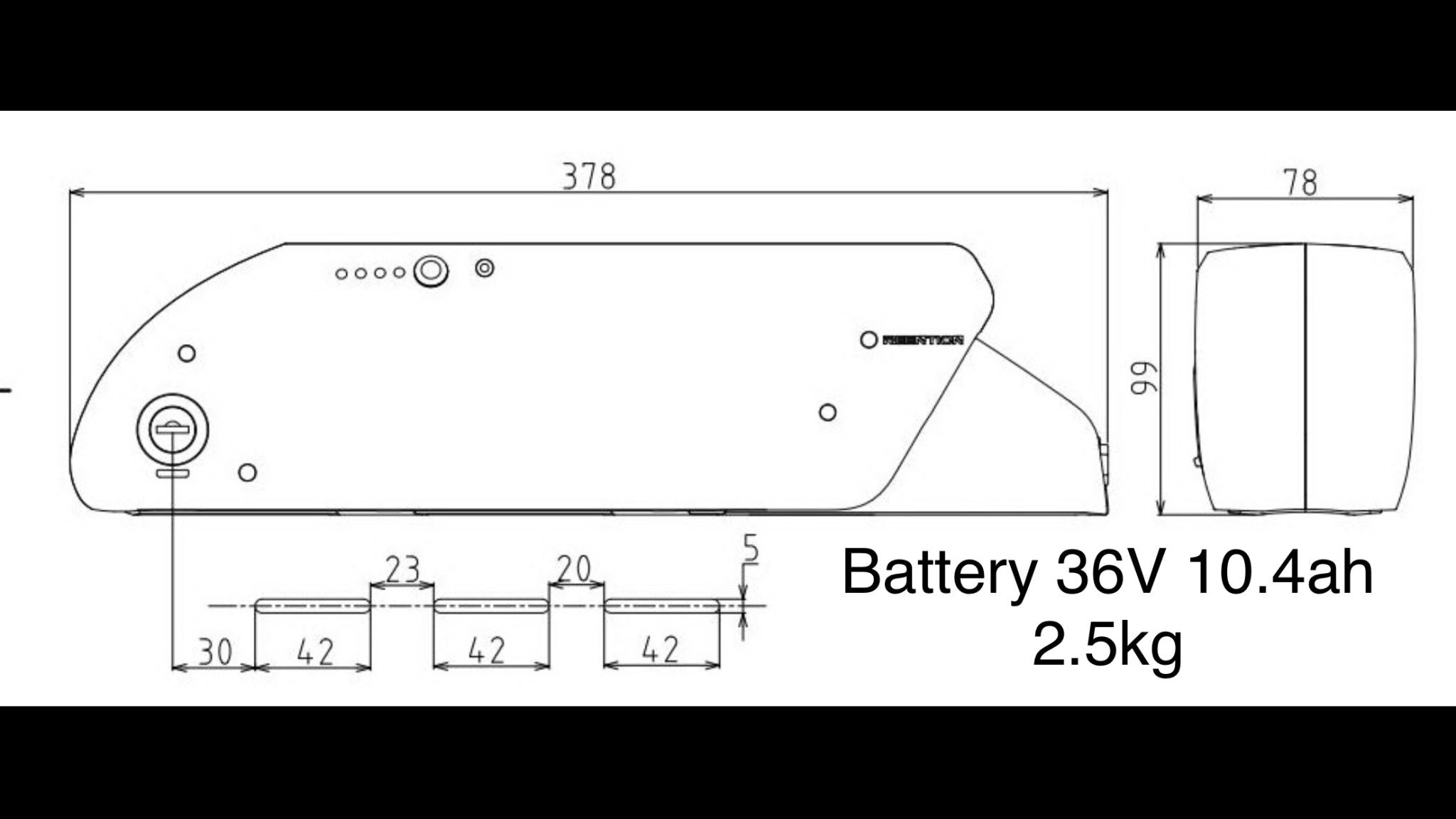

- water bottle location ready, 378L (Bottom)/260L (Top) x 78W x 110H mm space require for Battery.
- The min. distance between two of your rear wheel forks is 135mm.
(Note: the width of the wheel motor hub is 142mm, you need to pull the rear fork a bit wider when placing the rear wheel in)
- The inner distance between the brake caliper and brake disc should be 11 ~ 13mm (See last photo). Please check if your disc brake caliper's position is suitable.
- The rear fork dropouts slot is 11mm required

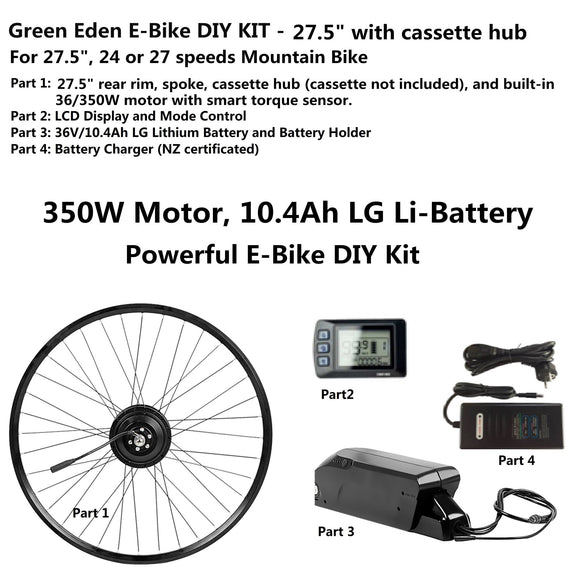

This DIY Kit contains four parts:
Part 1: 27.5" Rear Wheel including Rear Rim (30mm W), Spoke, cassette hub, and built-in 36V/350W brushless geared Motor with smart torque transducer.
Part 2: LCD Display and mode control

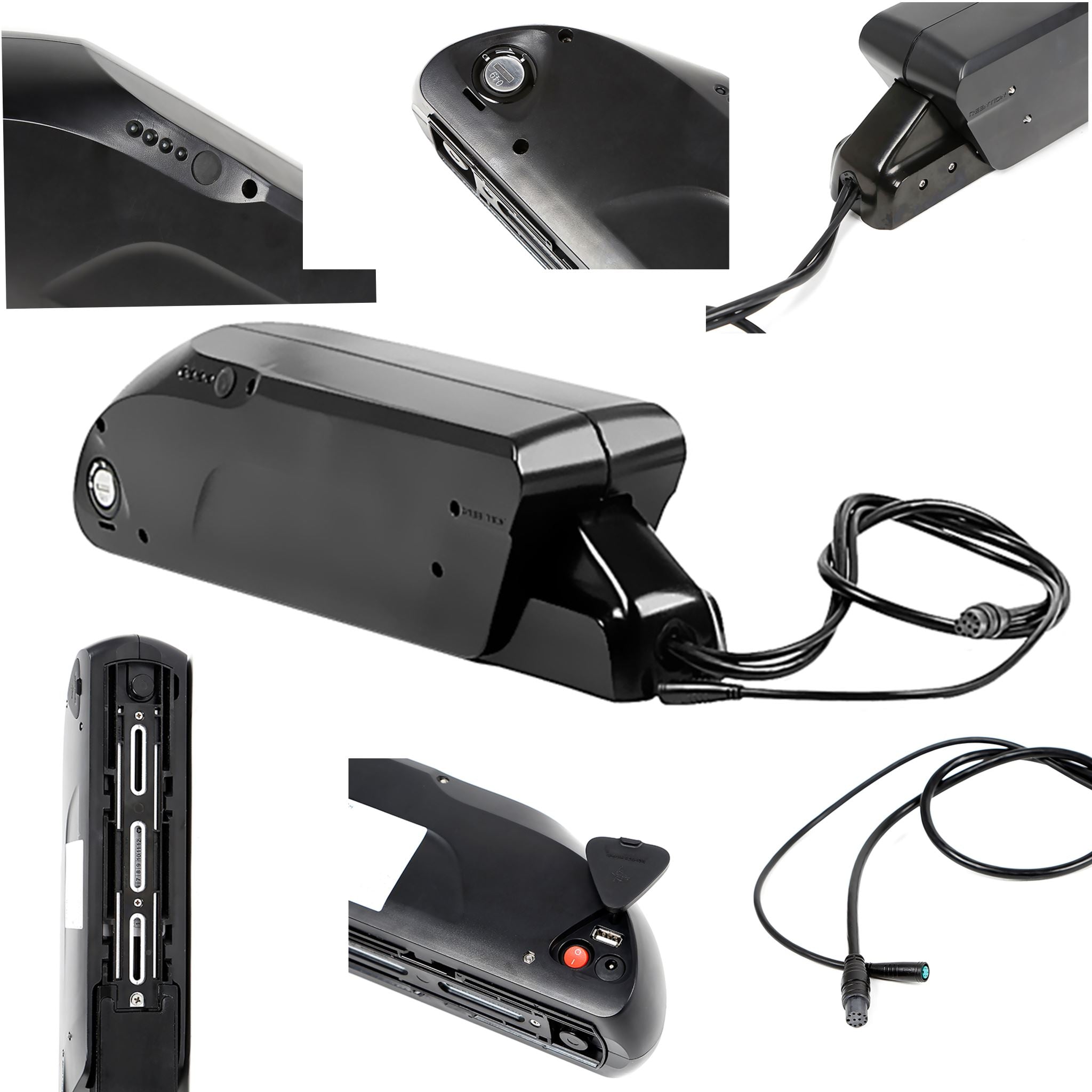

Part 3: 36V/15.6Ah Lithium Battery with built-in intelligent controller (Patented product), come with Battery Holder
Part 4: Battery Charger
Part 5: Throttle
- Brand Name: Green Eden OEM, designed by Green Eden, made in China
- Motor: 36Vdc 350W
- Battery: 36V/15.6Ah Lithium Battery
- Range: Up to 70km (depended on road, Load and mode)
- Pedaling assistant and Throttle.
- Max. speed: up to 35 km/h
1 year return to base warranty
We convert your bike to electric bike at $60 or more (Depended)
