E-Bike DIY Kit B- convert 700c/29” bike to EBike, 48V 500W, 12.8Ah LG, throttle
Convert your bike with 700c/29” rear wheel to Electric Bike!
Your bike must meet the following specifications, please read carefully otherwise we don't refund the round-trip shipping fee.
- 700c/29” rear wheel without Cassette (our Kit provides cassette hub for 7 ~ 10 sprocket cassette)
Note, this kit doesn't come with cassette, user need to use your existing cassette.
- water bottle location ready, 378L (Bottom)/260L (Top) x 78W x 99H mm space require for Battery.
- The distance between the right side of the rear fork and the left side of brake disc is about 11 ~ 13mm (See last photo). Please check if your disc brake pads' position is suitable. If your bike is not disc brake, you can keep using your existing brake system.
- The min. distance required between two of your rear wheel forks is approxi. 142mm.
(Note: the actual distance of the bike shown in the photos was 135mm, it was still ok to fit our rear wheel.)
- Our rear rim axle diameter is approx. 11mm.
We convert your bike to electric bike at a flat rate of $60.

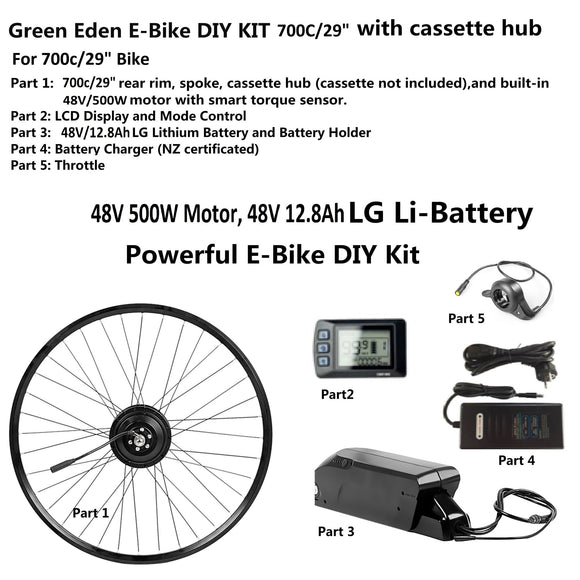

This DIY Kit contains four parts:
Part 1: 700c/29” Rear Wheel including Rear Rim, Spoke, cassette hub, and built-in 48V/500W brushless geared Motor with smart torque transducer.
Part 2: LCD Display and mode control
Part 3: 48V/12.8Ah LG Lithium Battery with built-in intelligent controller (Patented product), come with Battery Holder
Part 4: Battery Charger
Part 5: Throttle
- Brand Name: Green Eden OEM, designed by Green Eden, made in China
- Motor: 48Vdc 500W
- Battery: 48V/12.8Ah Lithium Battery, powerful LG Batteries inside.
- Range: 60 km or more at mode 1 ~ 3 (depended on road, Load and weather condition)
- Pedaling Assistant and Throttle
- Max. Speed: 40km/h
- Patented Smart torque technology used. Automatically adjusts assistant power according to your pedaling force based on the assist mode selected, saves power.
1 year return to base warranty (conditions applied)
