E-Bike DIY Kit - convert 29"/700c bike to E-Bike, 36V 350W motor, 12.8Ah LG
Convert your bike with 700c/29” rear wheel to Electric Bike!
Your bike must meet the following specifications, please read carefully otherwise we don't refund the round-trip shipping fee.
- 700c/29” rear wheel without Cassette (our Kit provides cassette hub for 7 ~ 10 sprocket cassette)
Note, this kit doesn't come with cassette, user need to use your existing cassette.
- water bottle location ready, 378L (Bottom)/260L (Top) x 78W x 110H mm space require for Battery.
- The min. distance between two of your rear wheel forks is 135mm.
(Note: the width of the wheel motor hub is 142mm, you need to pull the rear fork a bit wider when placing the rear wheel in)
- The inner distance between the brake caliper and brake disc should be 11 ~ 13mm (See last photo). Please check if your disc brake caliper's position is suitable.
- The rear fork dropouts slot is 11mm required

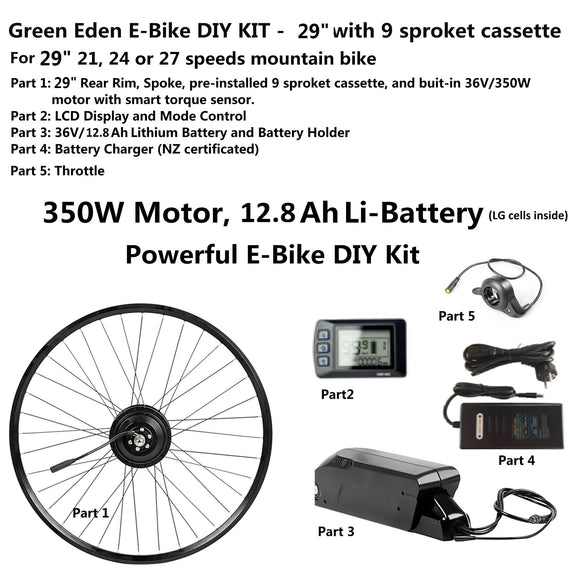

This DIY Kit contains four parts:
Part 1: 700c/29” Rear Wheel including Rear Rim, Spoke, cassette hub, and built-in 36V/350W brushless geared Motor with smart torque transducer.
Part 2: LCD Display and mode control
Part 3: 36V/12.8Ah LG Lithium Battery with built-in intelligent controller (Patented product), come with Battery Holder
Part 4: Battery Charger
Part 5: Throttle
- Brand Name: Green Eden OEM, designed by Green Eden, made in China
- Motor: 36Vdc 350W
- Battery: 36V/12.8Ah LG Lithium Battery, powerful Batteries inside.
- Range: up to 60km (depended on road, Load and mode )
- Pedaling assistant and Throttle.
- Max. speed: up to 35 km/h
1 year return to base warranty
We convert your bike to electric bike at $60 or more (Depended)
Add one more 36V 10.4Ah LG battery coming with a carrier for $610.49
