E-Bike DIY Kit - convert 27.5" bike to EBike, 48V 500W motor, 12.8Ah LG Battery

  • $1,289.21
    Unit price per
Tax included. Shipping calculated at checkout.


Convert your mountain bike or handcycle to Electrical Bike!

The bike or handcycle must meet the following specifications, please read carefully otherwise we don't refund the round-trip shipping fee.
- 27.5" rear wheel with cassette hub (not freewheel, our Kit provides cassette hub for 7 ~ 10 sprocket)
Note, this kit doesn't come with cassette, for user prefer to install existing cassette to this kit.

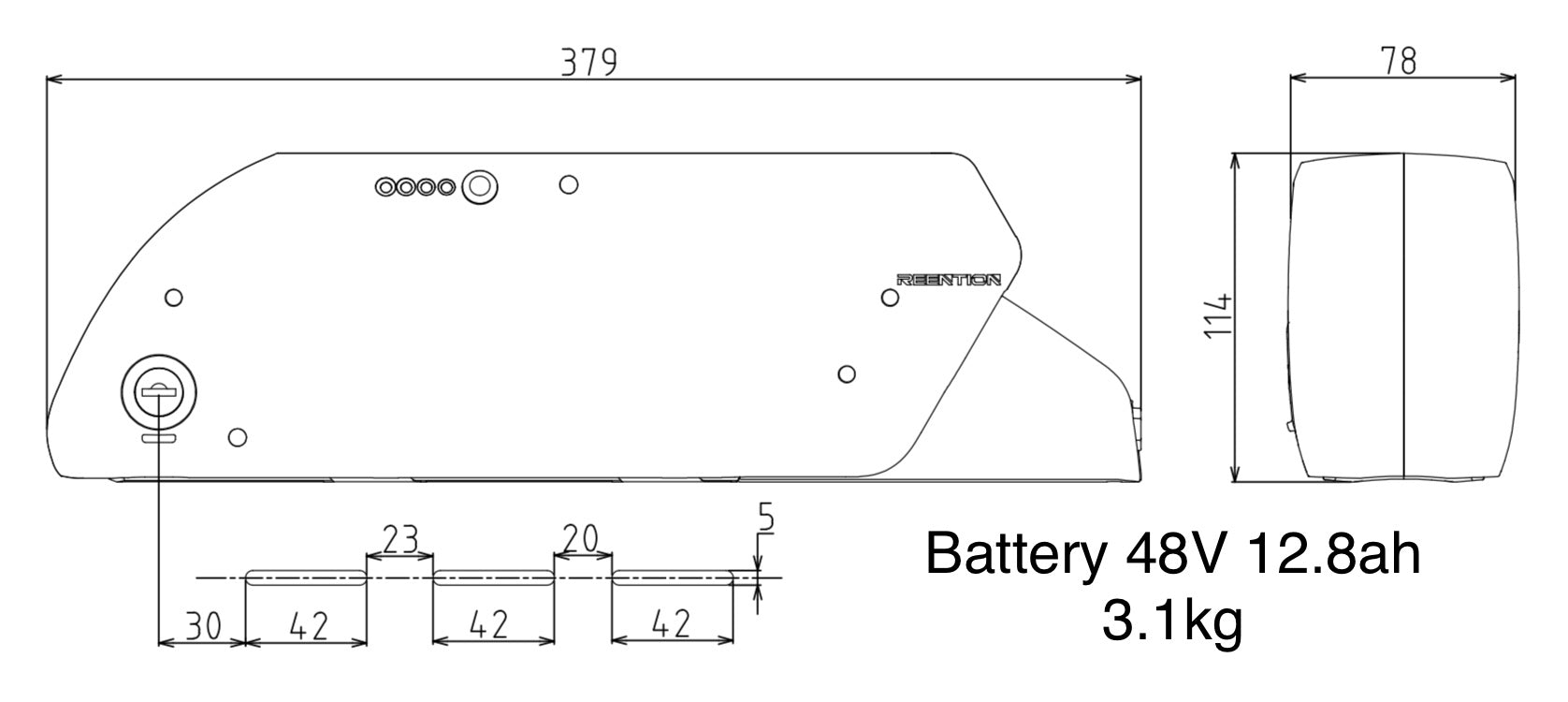

- water bottle location ready, 378L (Bottom)/260L (Top) x 78W x 99H mm space min. required for Battery.
- The min. distance between two of your rear wheel forks is 135mm.

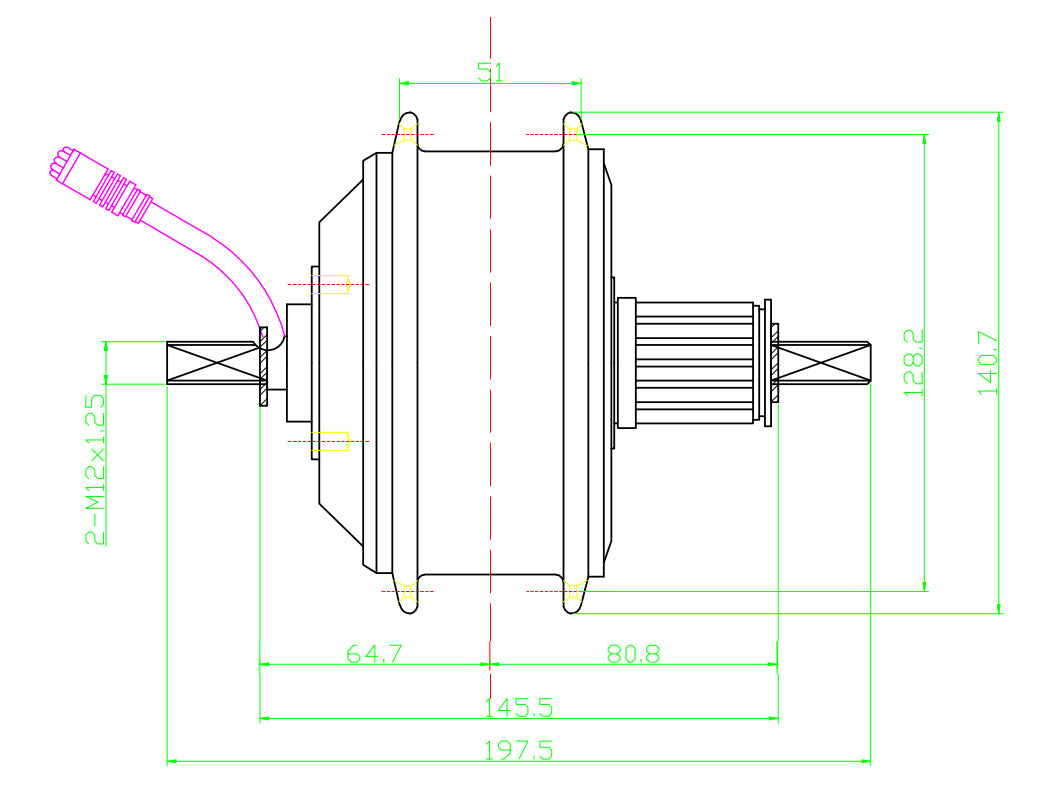

(Note: the width of the wheel motor hub is 142mm, you need to pull the rear fork a bit wider when placing the rear wheel in)
- The inner distance between the brake caliper and brake disc should be 11 ~ 13mm (See last photo). Please check if your disc brake caliper's position is suitable.
- The rear fork dropouts slot is 11mm required

This E-Bike Kit contains four parts:
Part 1: 27.5" Rear Wheel including Rear Rim, cassette hub, Spoke, and built-in 48V/500W brushless geared Motor with smart torque transducer.
Part 2: LCD Display and mode control
Part 3: 48V/12.8Ah LG Lithium Battery with built-in intelligent controller (Patented product), come with Battery Holder
Part 4: Battery Charger
Part 5: Throttle

Specifications:
- Brand Name: Green Eden OEM, designed by Green Eden, made in China
- Motor: 48Vdc 500W
- Battery: 48V/12.8Ah Lithium Battery, powerful LG Batteries inside.
- Range: Up to 60 km (depended on mode, road and Load )
- Pedaling assistant and Throttle.
- Max. Speed: 35km/h

We convert your bike to electric bike at $60 or more (Depended)
1 year return to the base warranty

Upgrade to 48V 16Ah or 768Wh (LG 18650 cells), just $100 extra. Dimensions: 377L x 132H x 78W mm
