Tax included. Shipping calculated at checkout.

Convert your bike to Mid-drive Electric bike with this Mid-Drive E-Bike KIT.

Center mounted motor 48V 500W, with 13Ah Battery LG

Our Mid-drive E-bike system is manufactured by one of the best Mid-drive motor factories, LingBei, in China. It has very good performance close or better than the BaFang. LingBei Mid-drive motors have been successfully tested in a super-long distance cycling of about 4000km, for extreme performance testing.


The bike must meet the following specifications, please read carefully otherwise we don't refund the round-trip shipping fee.

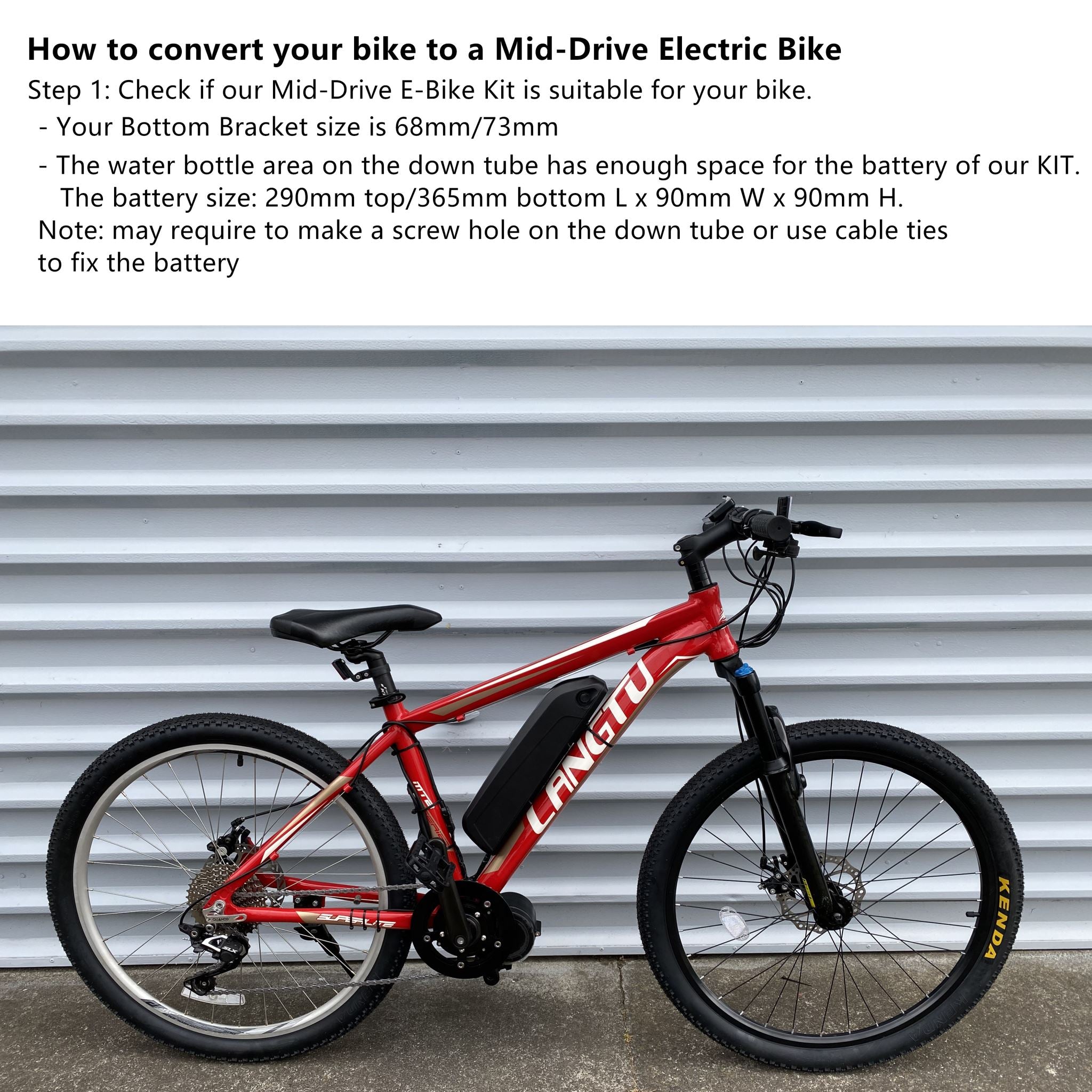

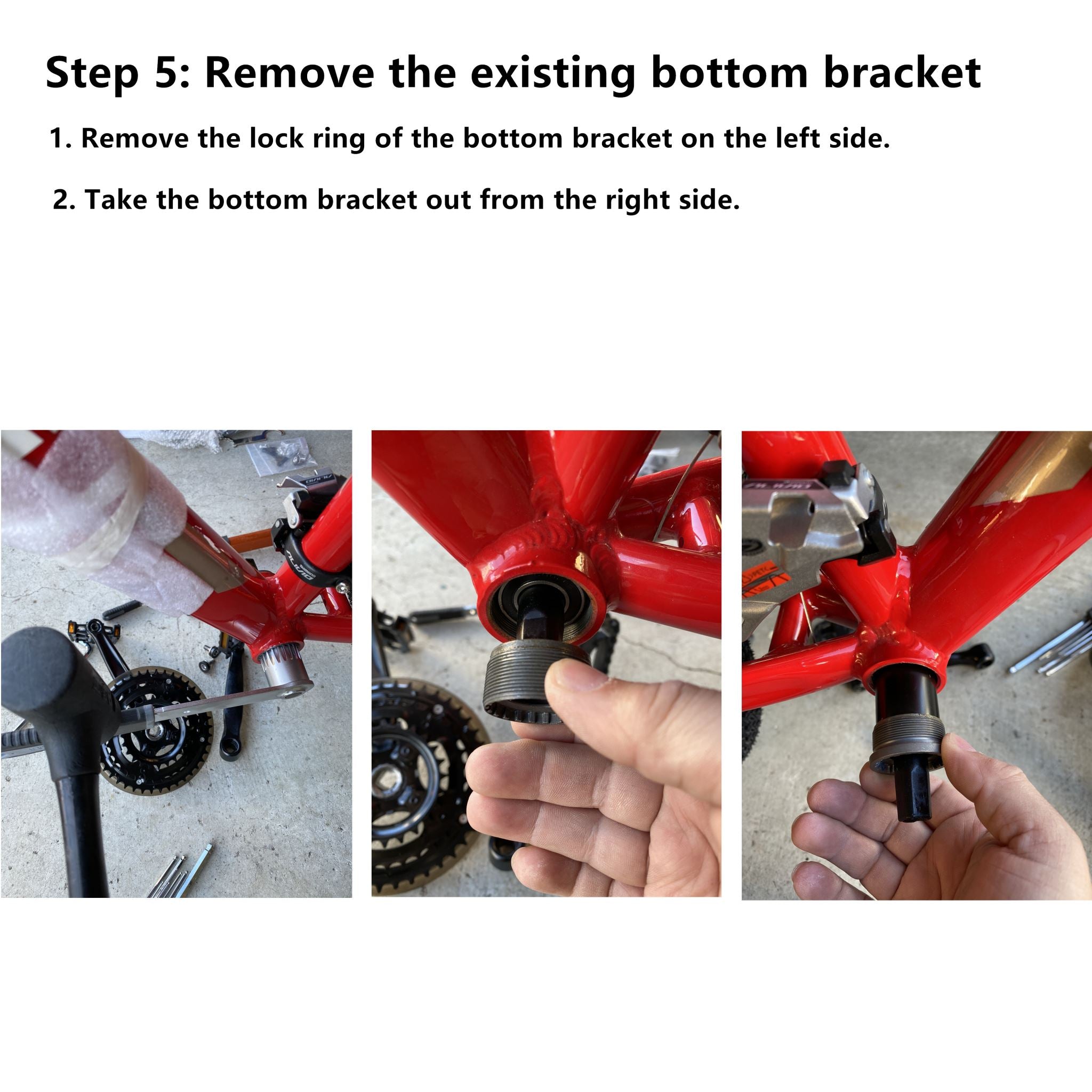

- The bottom bracket size is 68mm/73mm (suitable for most bikes)
- Water bottle location ready, 300 Top / 370 Bottom L x 90 W x 95 H mm min. space required for the Battery.
Note:

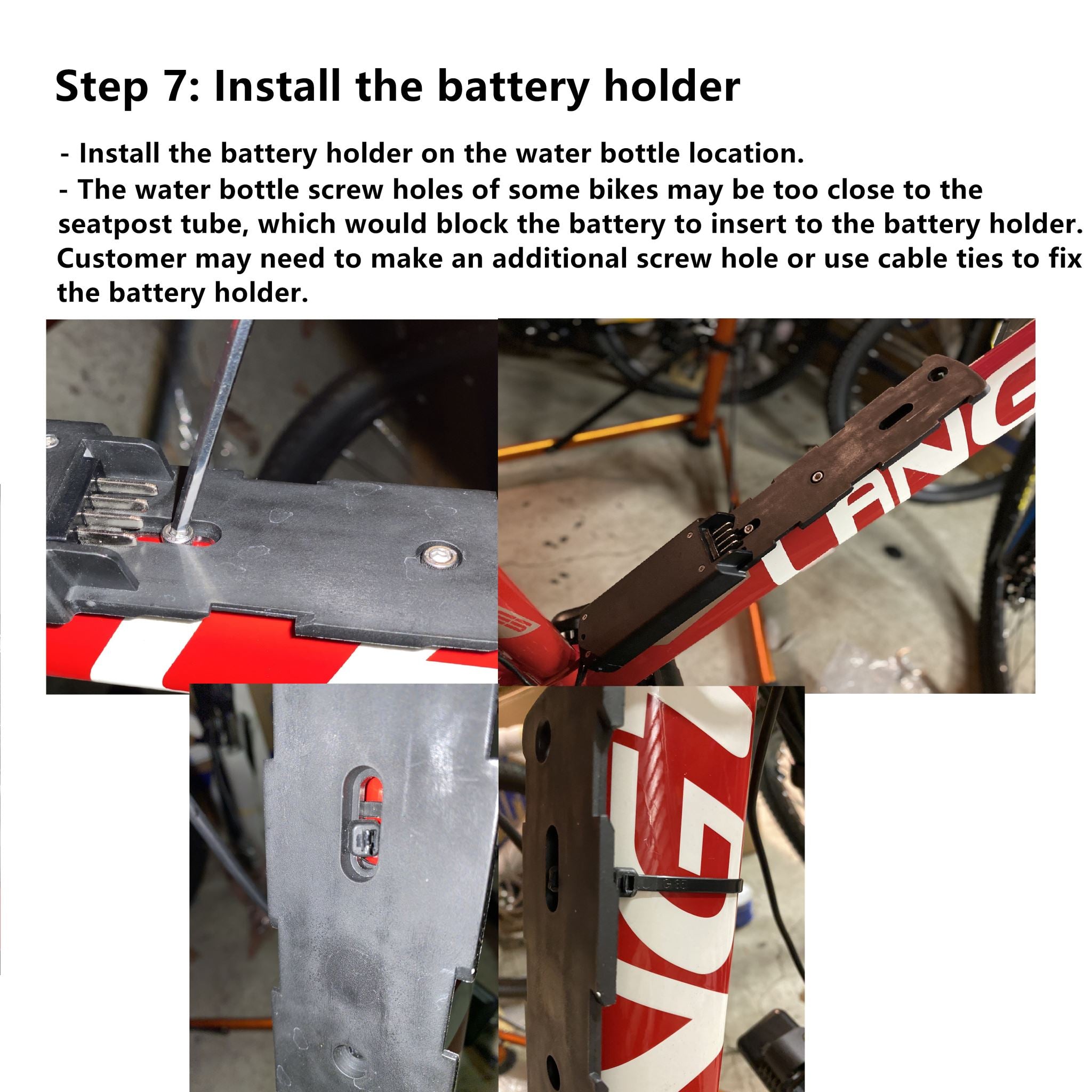

- May require an additional screw hole on the down tube or use cable ties to fix the battery, as some bikes' water bottle location could be too close to the seatpost tube which stops the battery to load into the battery holder.

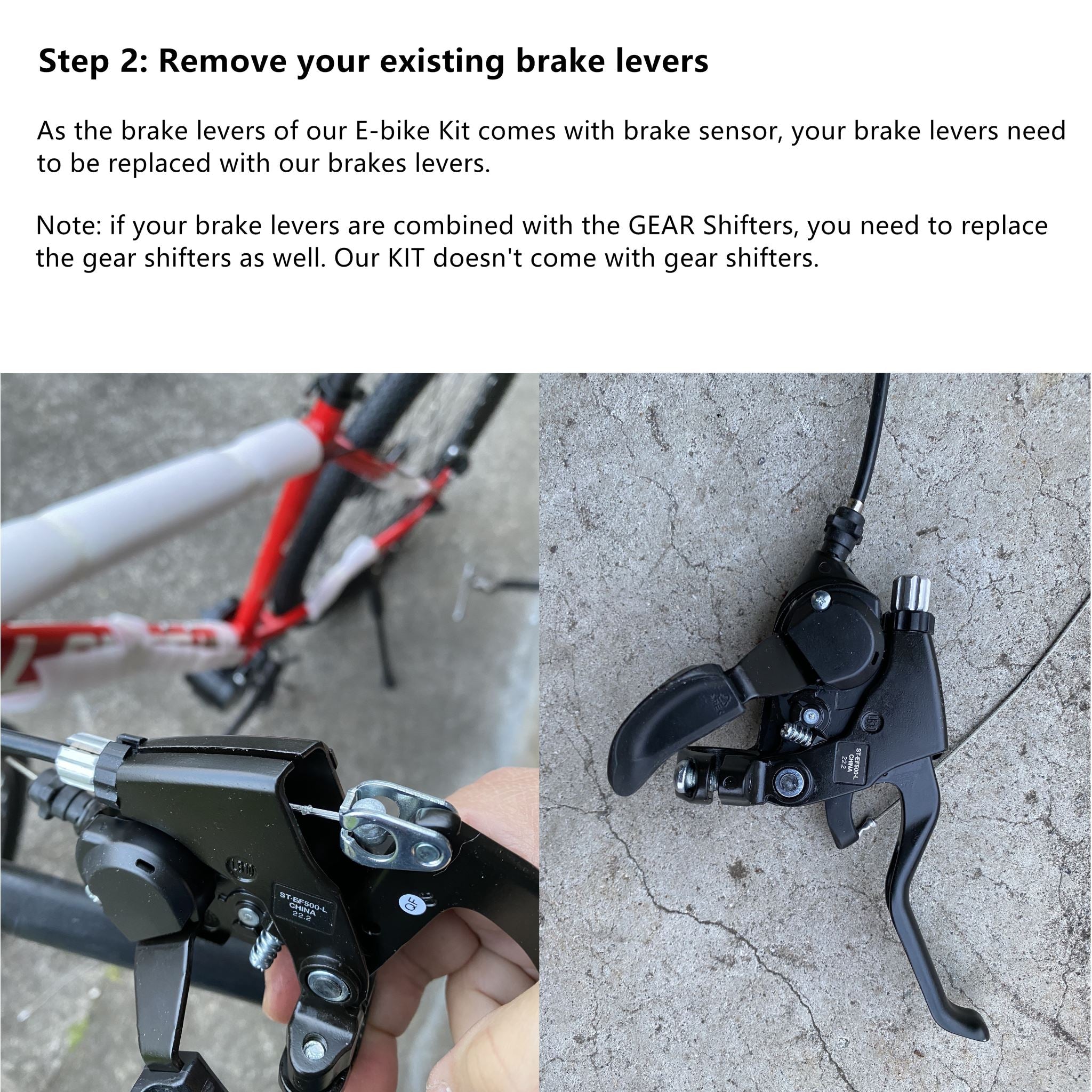

- If the brake lever/gear shifter is combined together, a standalone gear shifter (not included) is required to replace the existing combined shifter.
- The existing front chainrings will be replaced with our one.

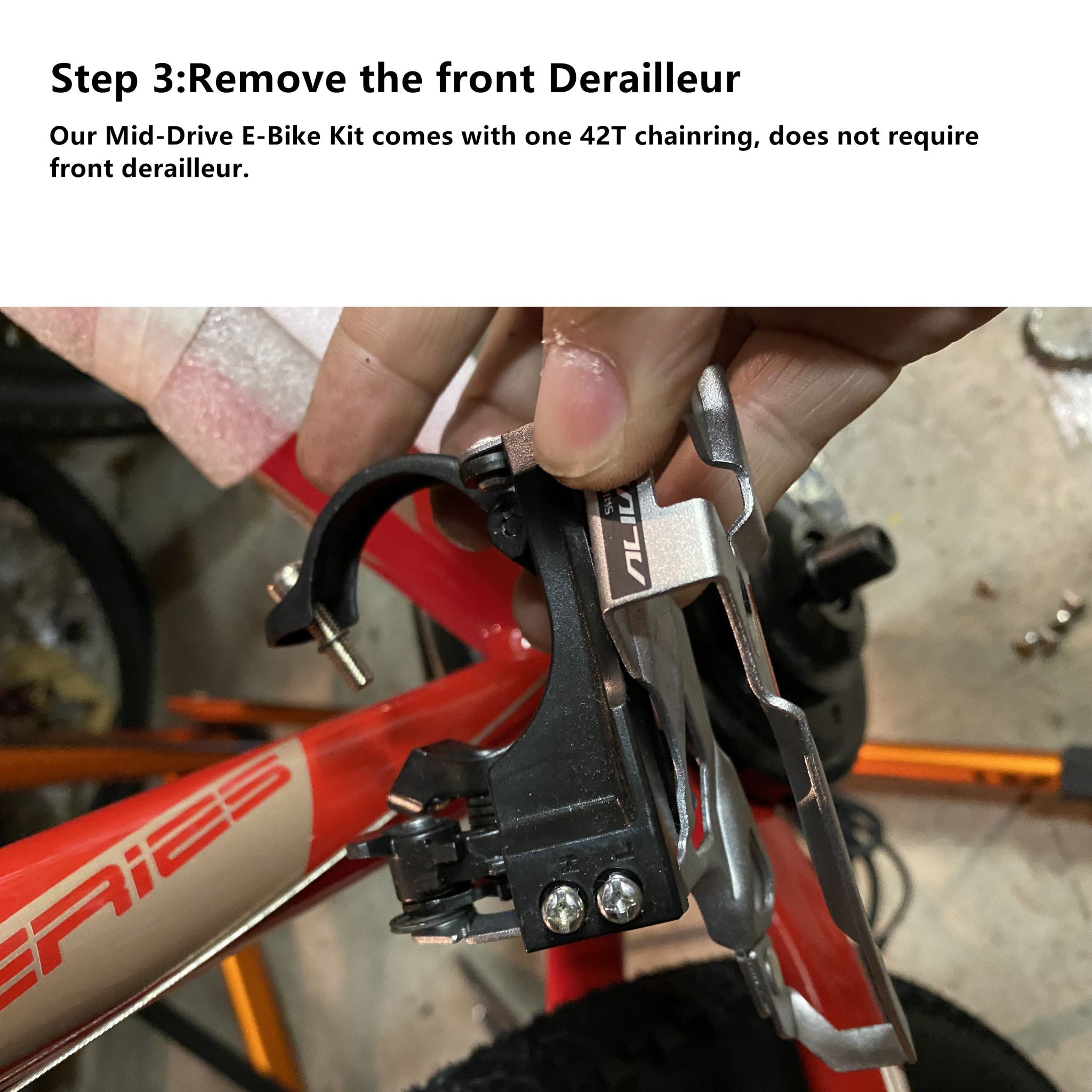

- The existing Front Derailleur needs to be removed.

Specifications:
- Brand Name: LingBeil
- Motor: 48Vdc 500W
- Max. Motor torque: 90Nm
- Torque control, Torque sensor inside the motor.
- Battery: 48V/13Ah Lithium Battery, powerful LG 18650 Batteries inside.
- LCD Display for mode selection: Mode 1 for the least power and longest mileage, mode 5 for the strongest power and the least mileage.
- Throttle: Yes
- Range: up to 55km or more at mode 1 ~ 3 (depends on road/load)

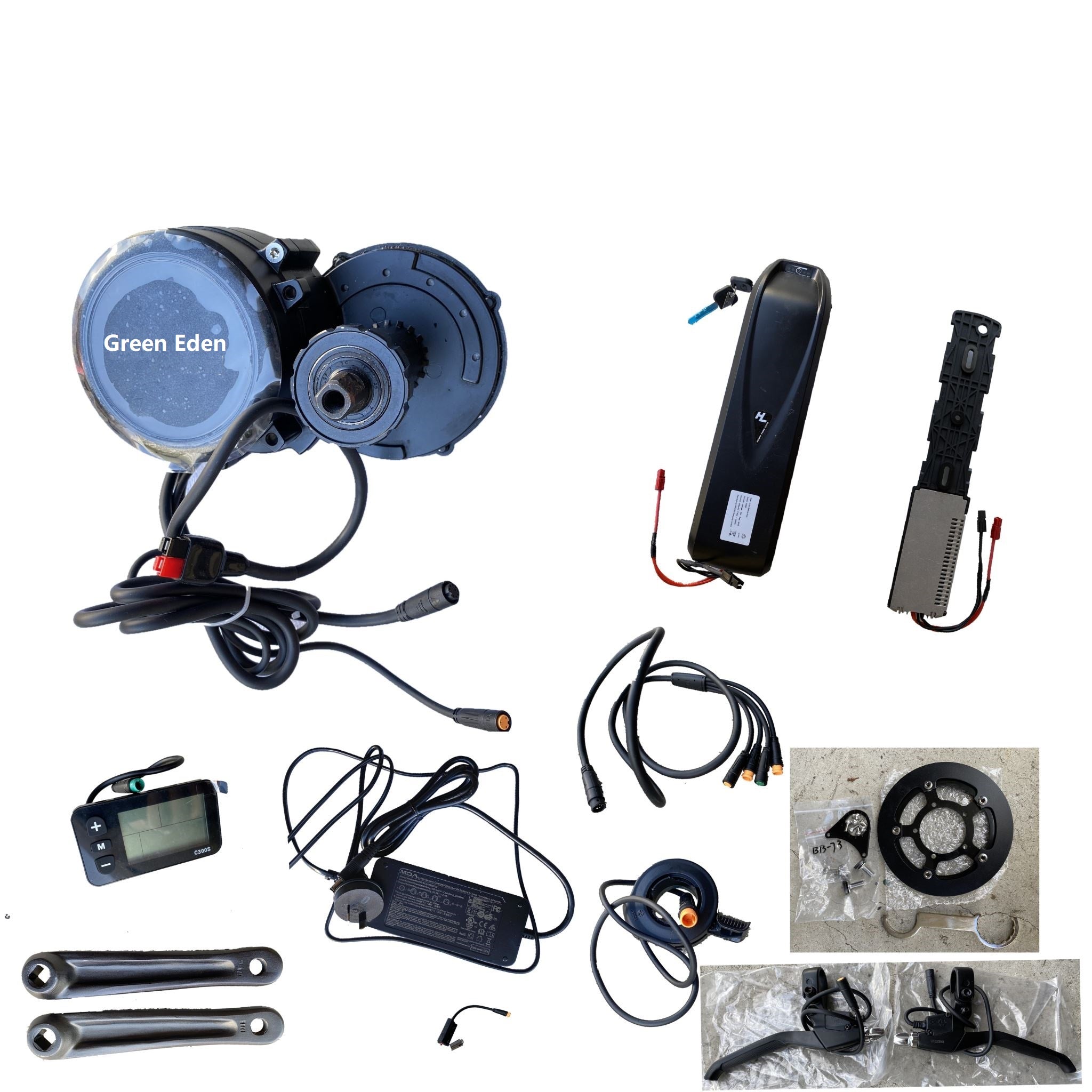

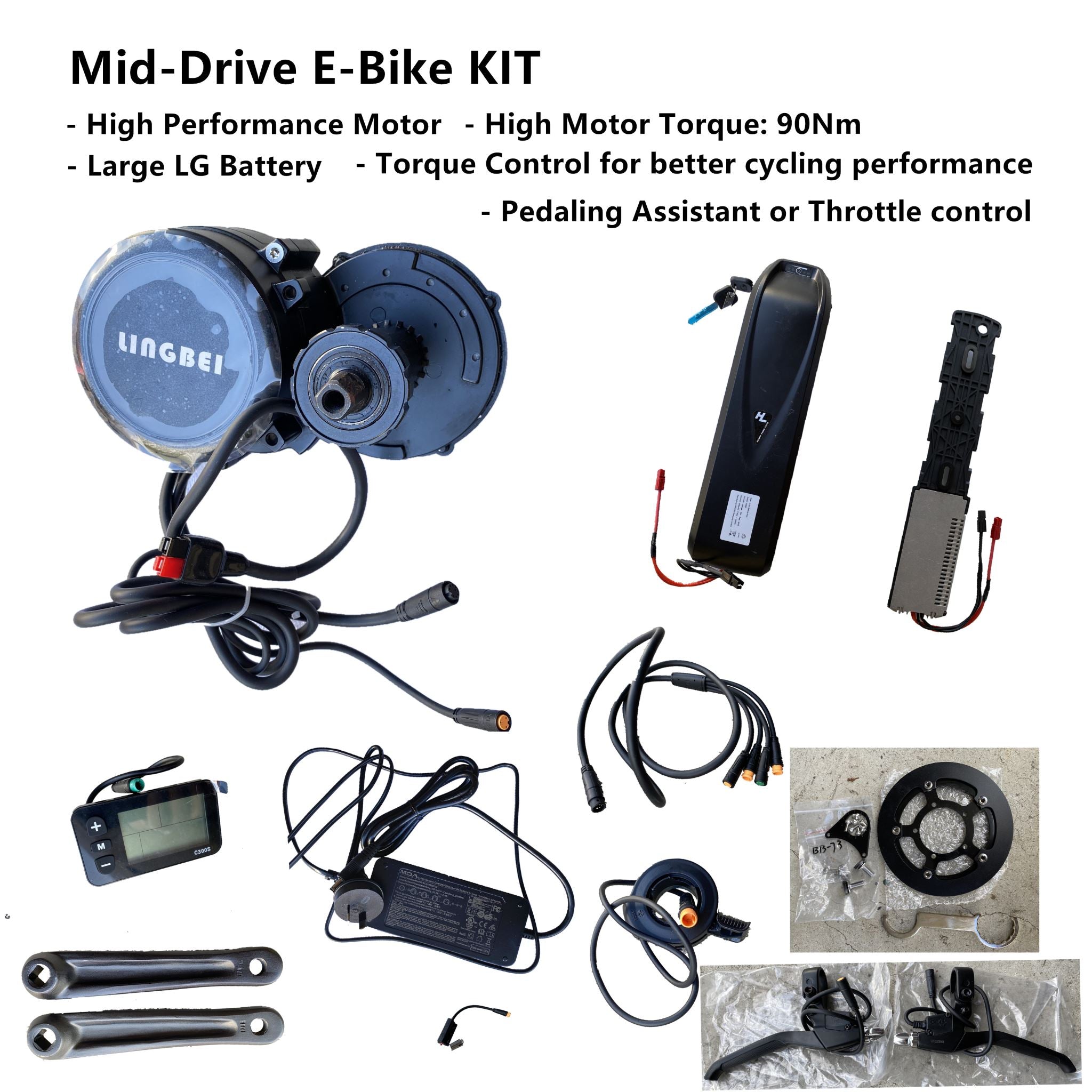

This Kit contains:

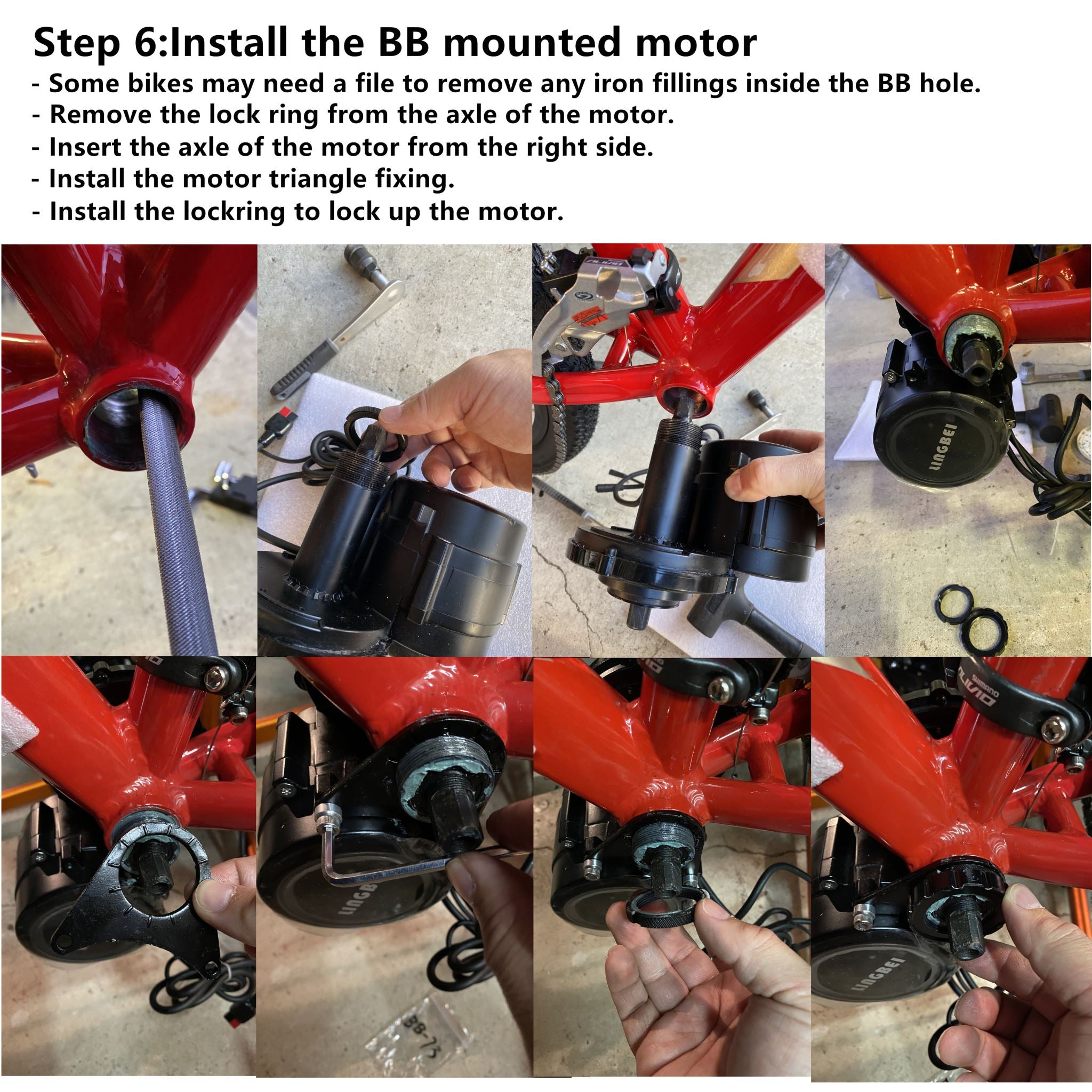

- Mid-drive Motor 48V 500W

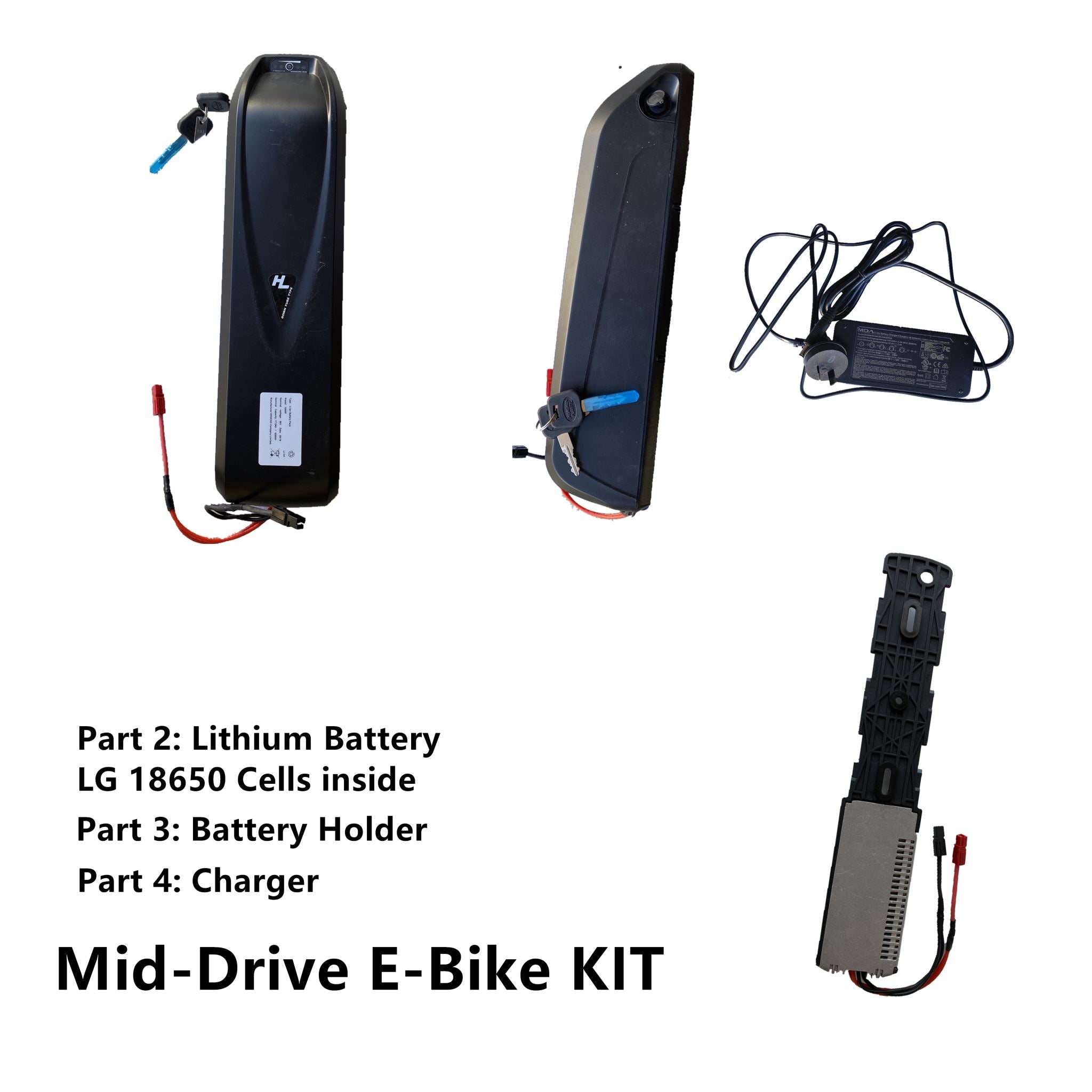

- Lithium Battery 13Ah LG
- Battery holder/controller
- Battery Charger

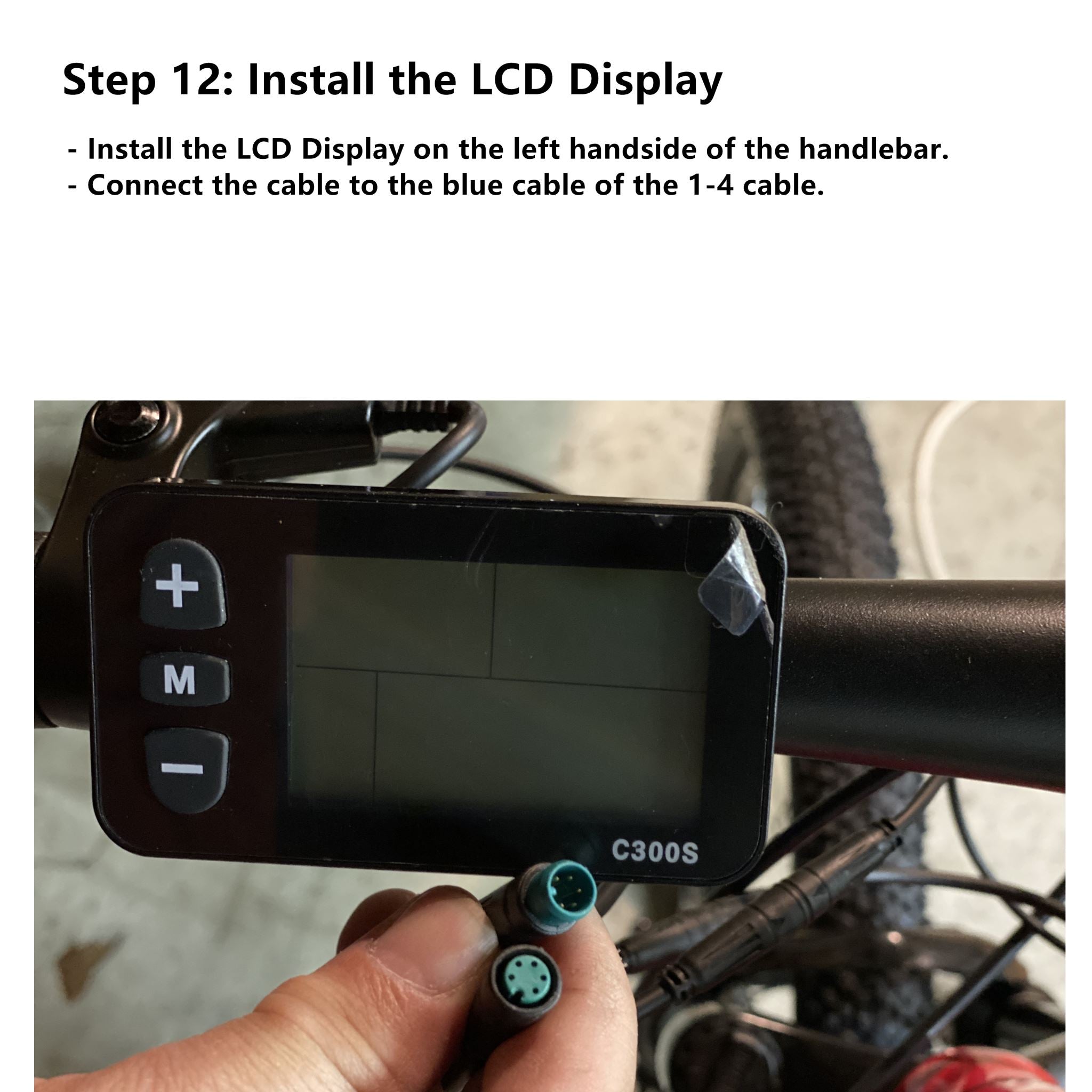

- LCD Display

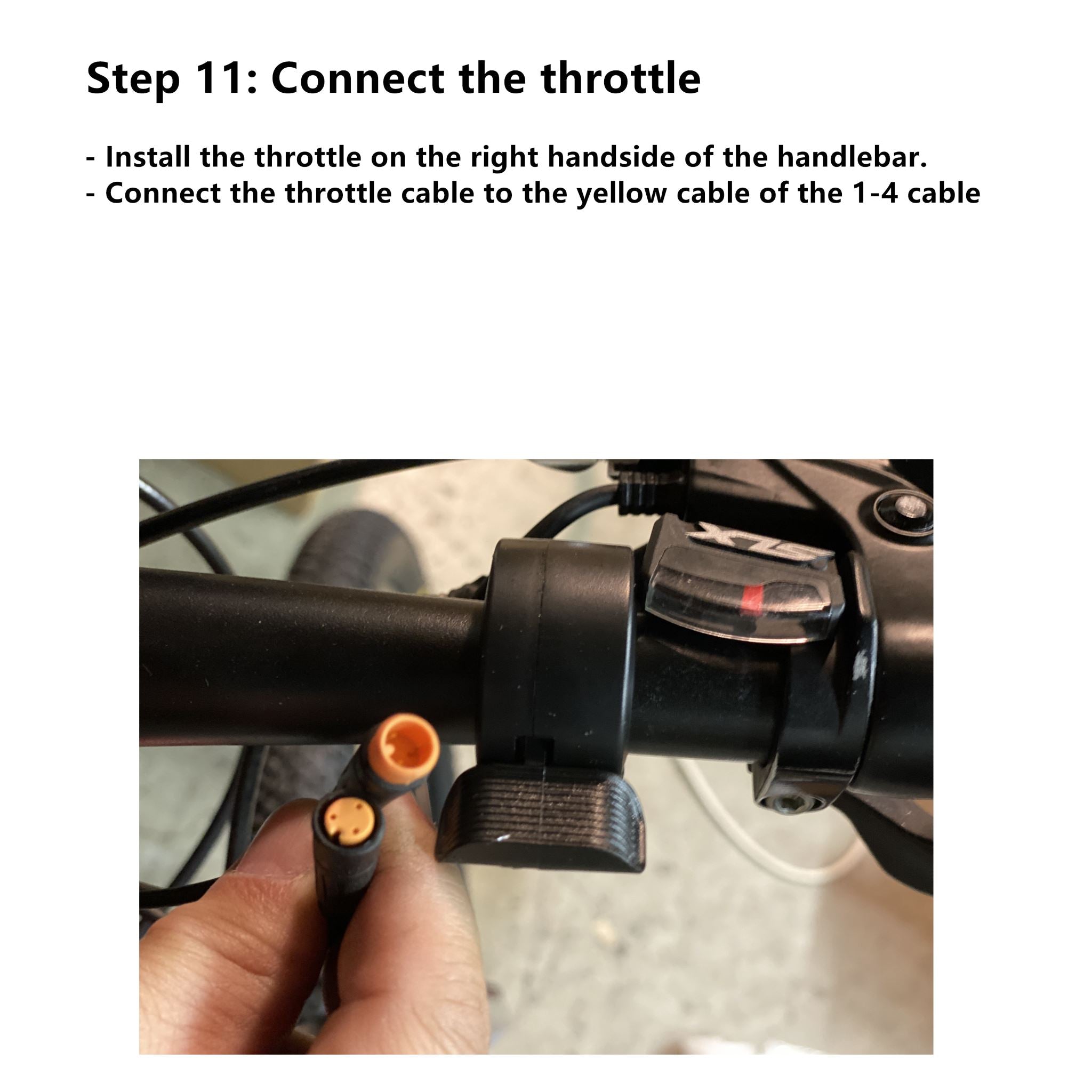

- Throttle

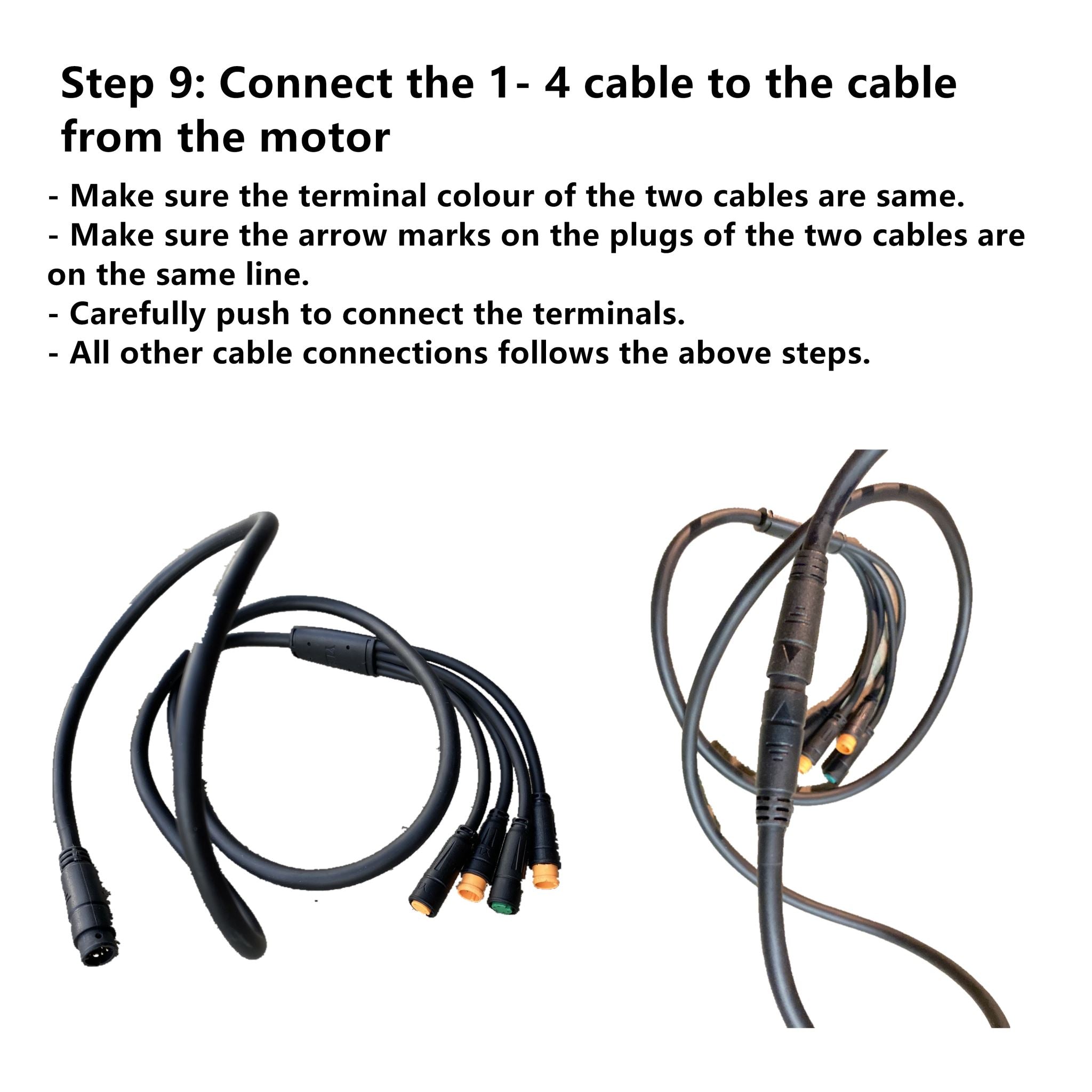

- 1 - 4 Cable

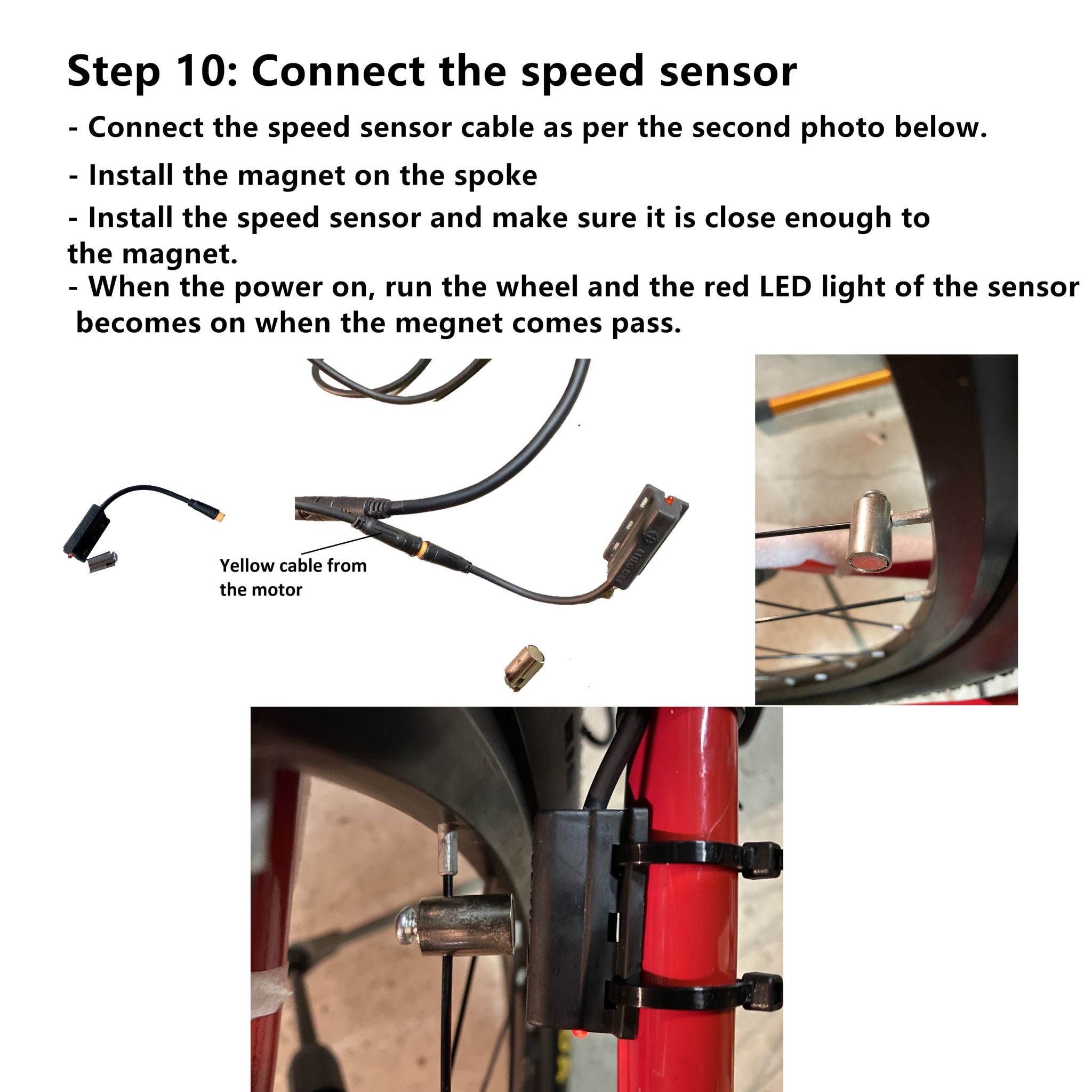

- Speed Sensor

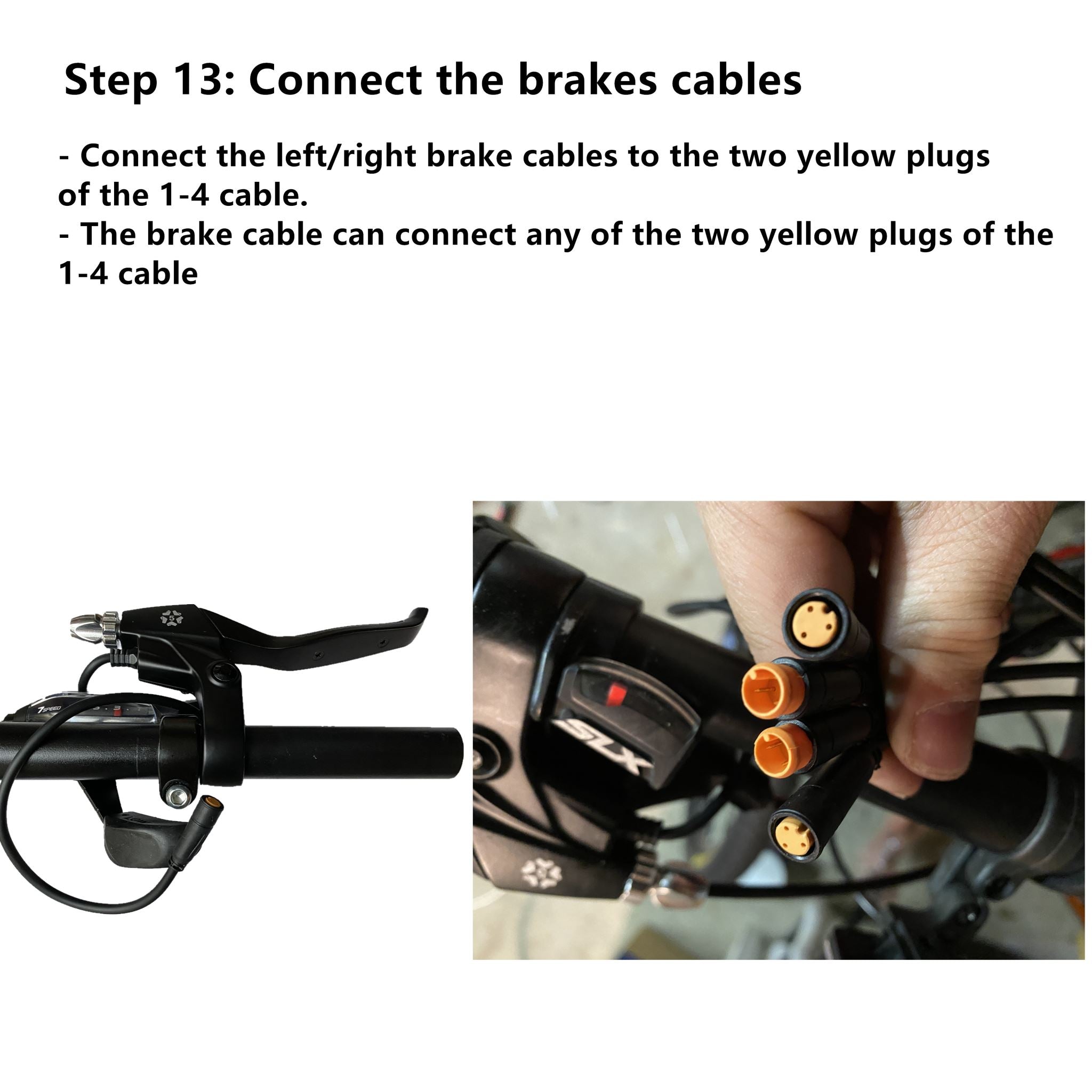

- Brake levers with sensor

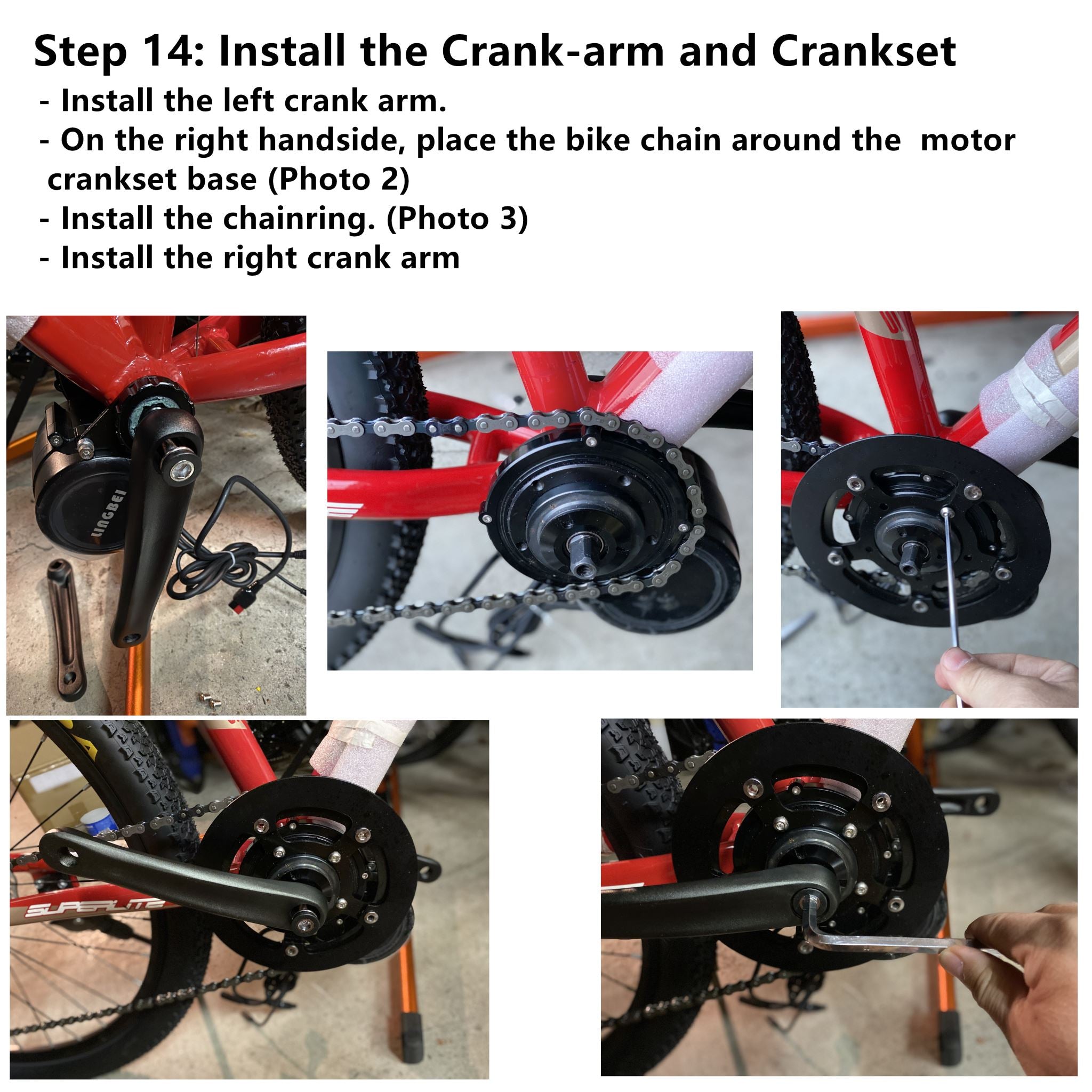

- Chainring
- BB tool
- Crank arms
- Motor Fixing
1 Year return to base warranty (conditions applied)
